35mm² Long Palm & Barrel Blank Palm

CL35LPB

$5.10
In Stock

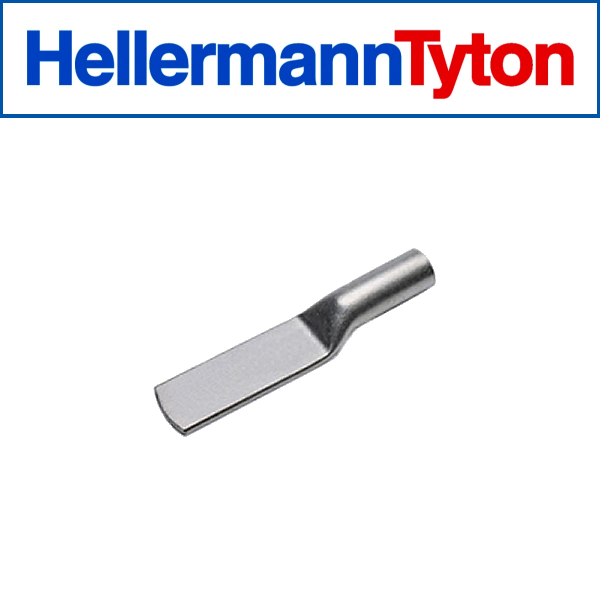

Copper Compression Lug Long Palm and Barrel 35mm²

Features

  • Copper Grade C11000
  • 99.9% Copper Annealed and Tinned
  • Maximum Oxygen Content 30ppm
  • Operating Temperature Range -55°C to +155°C
  • Terminate with Australian standard compression tooling only
35mm² Copper Lugs Long Palm & Barrel - All Dimensions mm
Part No. Stud Ent ID Palm W Barrel L Overall L
CL35LPB BP 8.2 18 35 112



(CL35LPB)

Material Property
Copper




99.9% Pure Copper
Oxygen 30ppm Maximum
Tensile Strength 205Mpa Minimum
Ductile Rating 40%
Final Metal State Fully Annealed
Electroplating 99.9% Pure Tin (Other Lead & Antimony)
Performance Conformant Standard AS/NZS4325 Part 1 :1995
Conductivity Total Conductivity 99.9% IACS
Resistance Total Resistance 1.72 micro-ohms per cm



SKU CL35LPB
Brand HellermannTyton
